30 Jun 2023

Detecting and splitting scenes in a video

When editing videos for my YouTube channel, Learn Data with Mark, I spend a bunch of time each week chopping up a screencast into scenes that I then line up with a separately recorded voice-over. I was curious whether I could automate the chopping-up process and that’s what we’re going to explore in this blog post.

I started out by asking ChatGPT the following question:

ChatGPT Prompt

I want to chop up a demo for a YouTube video into smaller segments.
Ideally, I want to do the cuts when the screen is cleared.
Is there a Python library that will let me iterate over a video file and detect changes between frames?

ChatGPT pointed me to a library called PySceneDetect and that’s where our adventure begins. If you want to try this out yourself, I’ve created the following Poetry file containing all the dependencies that I used:

pyproject.toml

[tool.poetry]
name = "scene-detection"
version = "0.1.0"
description = ""
authors = ["Mark Needham <m.h.needham@gmail.com>"]
readme = "README.md"
packages = [{include = "scene_detection"}]

[tool.poetry.dependencies]
python = "^3.11"
opencv-python-headless = "^4.7.0.72"
scikit-image = "^0.21.0"
scenedetect = "^0.6.1"
pandas = "^2.0.3"
matplotlib = "^3.7.1"
plotly = "^5.15.0"
kaleido = "0.2.1"

[build-system]
requires = ["poetry-core"]
build-backend = "poetry.core.masonry.api"

If you create that file in a directory locally, you can install everything by running this command:

poetry install

You should now have a command line tool called scenedetect. After trying a few command that didn’t seem to do anything, I came across an example that computes the difference between adjacent frames (detect-content):

scenedetect --input BetterSQL-Demo.mp4 \
  -s better-sql.stats-detectcontent.csv \
  detect-content \
  list-scenes

It writes those differences to better-sql.stats-detectcontent.csv and then I use the list-scenes command to output the detected scenes. The output is shown below:

Truncated Output

[PySceneDetect] Scene List:
-----------------------------------------------------------------------
 | Scene # | Start Frame |  Start Time  |  End Frame  |   End Time   |
-----------------------------------------------------------------------
 |      1  |           1 | 00:00:00.000 |        7101 | 00:01:58.350 |
-----------------------------------------------------------------------

It’s only detected one scene, which isn’t quite right. There are quite a few transitions in the video where I got from one code example to a blank screen and I want each of those to be a new scene. Let’s have a look at the first few lines of the CSV file:

head -n5 better-sql.stats-detectcontent.csv

Table 1. The first few lines of `better-sql.stats-detectcontent.csv`
Frame Number	Timecode	content_val	delta_lum
2	00:00:00.017	4.5211226851851856e-05	0.00013563368055555556
3	00:00:00.033	0.0	0.0
4	00:00:00.050	0.0	0.0
5	00:00:00.067	0.0	0.0

I don’t know what most of these values mean, but the documentation suggested that we create a chart plotting the Frame Number against the content_val. We can do that using plot.ly:

visual.py

import pandas as pd
import plotly.graph_objects as go
import plotly.io as pio

data = pd.read_csv('better-sql.stats-detectcontent.csv')

fig = go.Figure(data=go.Scatter(x=data['Timecode'], y=data['content_val'], mode='lines'))

fig.update_layout(
    title='Line Chart of Content Value',
    xaxis_title='Frame Number',
    yaxis_title='Content Value',
    autosize=True
)

pio.write_image(fig, 'figure.svg', width=1000, height=600)

The resulting image is shown below:

Figure 1. A plot of Frame Number vs Content Value

We can see that most of the time there are minimal changes between pairs of frames, but on around 15 occasions there is a change bigger than 1. Let’s try running scenedetect again, but this time with the threshold set to 1:

scenedetect --input BetterSQL-Demo.mp4 \
  -s better-sql.stats-detectcontent.csv \
  detect-content -t 1 \
  list-scenes

Running it with this threshold tells scenedetect to create a new scene whenever the threshold is exceeded. The output of running the command is shown below:

Truncated Output

[PySceneDetect] Scene List:
-----------------------------------------------------------------------
 | Scene # | Start Frame |  Start Time  |  End Frame  |   End Time   |
-----------------------------------------------------------------------
 |      1  |           1 | 00:00:00.000 |         509 | 00:00:08.483 |
 |      2  |         510 | 00:00:08.483 |         967 | 00:00:16.117 |
 |      3  |         968 | 00:00:16.117 |        1394 | 00:00:23.233 |
 |      4  |        1395 | 00:00:23.233 |        1763 | 00:00:29.383 |
 |      5  |        1764 | 00:00:29.383 |        2319 | 00:00:38.650 |
 |      6  |        2320 | 00:00:38.650 |        2808 | 00:00:46.800 |
 |      7  |        2809 | 00:00:46.800 |        2887 | 00:00:48.117 |
 |      8  |        2888 | 00:00:48.117 |        4057 | 00:01:07.617 |
 |      9  |        4058 | 00:01:07.617 |        5308 | 00:01:28.467 |
 |     10  |        5309 | 00:01:28.467 |        5368 | 00:01:29.467 |
 |     11  |        5369 | 00:01:29.467 |        5449 | 00:01:30.817 |
 |     12  |        5450 | 00:01:30.817 |        6819 | 00:01:53.650 |
 |     13  |        6820 | 00:01:53.650 |        6879 | 00:01:54.650 |
 |     14  |        6880 | 00:01:54.650 |        7101 | 00:01:58.350 |
-----------------------------------------------------------------------

It detected 14 different scenes, which sounds promising. Let’s now run it one more time, but this time with the split-video command appended so that it will split the video up into segments:

scenedetect --input BetterSQL-Demo.mp4 \
  -s better-sql.stats-detectcontent.csv \
  detect-content -t 1 \
  list-scenes split-video

Let’s check the resulting file listing:

du -h BetterSQL-Demo-Scene*.mp4

Output

284K	BetterSQL-Demo-Scene-001.mp4
324K	BetterSQL-Demo-Scene-002.mp4
224K	BetterSQL-Demo-Scene-003.mp4
216K	BetterSQL-Demo-Scene-004.mp4
276K	BetterSQL-Demo-Scene-005.mp4
388K	BetterSQL-Demo-Scene-006.mp4
144K	BetterSQL-Demo-Scene-007.mp4
576K	BetterSQL-Demo-Scene-008.mp4
2.0M	BetterSQL-Demo-Scene-009.mp4
176K	BetterSQL-Demo-Scene-010.mp4
276K	BetterSQL-Demo-Scene-011.mp4
816K	BetterSQL-Demo-Scene-012.mp4
116K	BetterSQL-Demo-Scene-013.mp4
196K	BetterSQL-Demo-Scene-014.mp4

We can have a look at some of the frames in the extracted scenes by calling the save-images command like this:

scenedetect --input BetterSQL-Demo.mp4 \
  -s better-sql.stats-detectcontent.csv \
  detect-content -t 1 \
  list-scenes save-images

Let’s have a look at a couple of examples:

Figure 2. Last frame of scene 1

Figure 3. First frame of scene 2

That looks good, that’s exactly the cut that I would have made. And it does seem to pick up all the switches to a completely blank screen as new scenes. An interesting cut that it found that is quite clever is the following one:

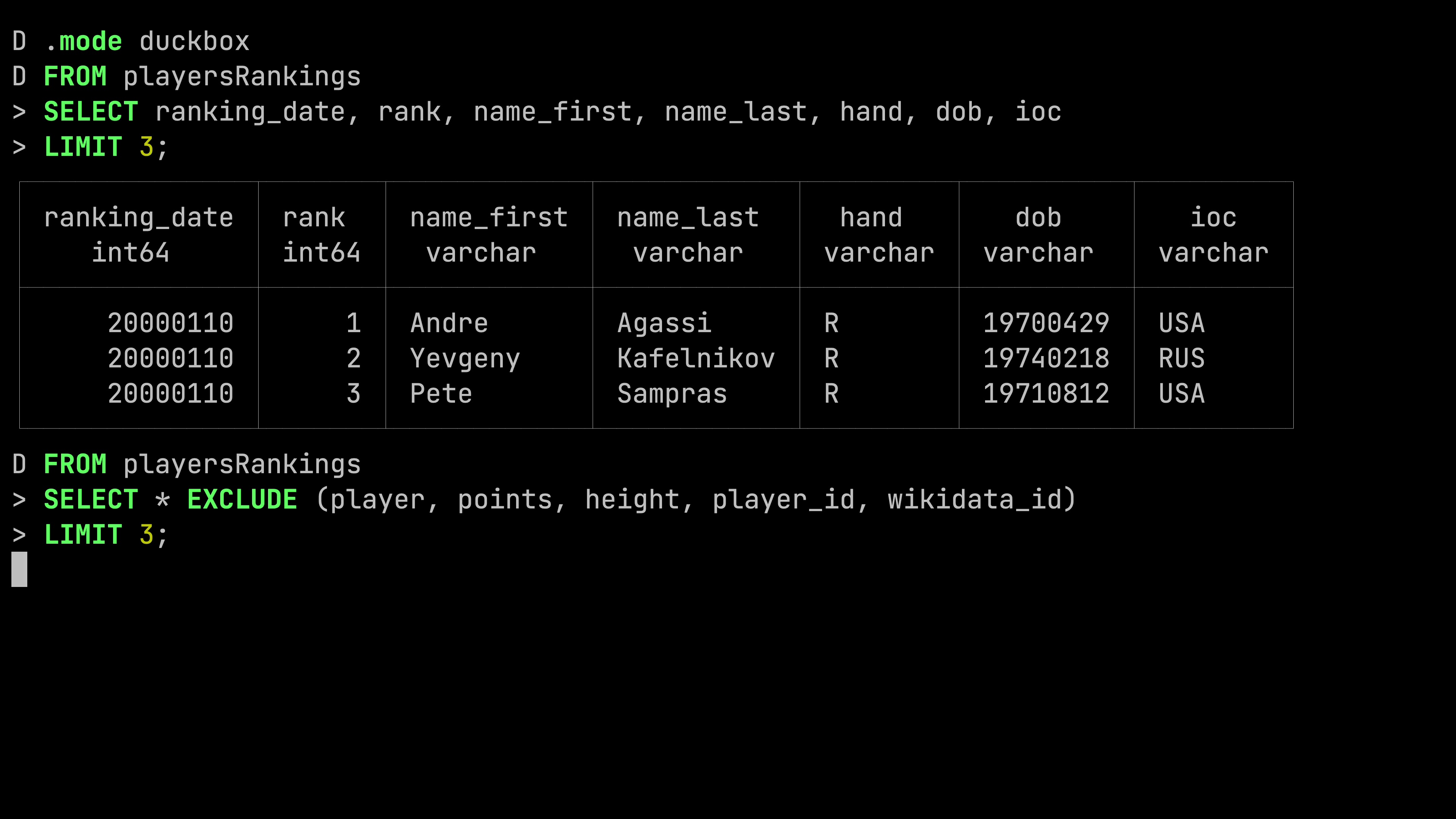

Figure 4. Last frame of scene 6

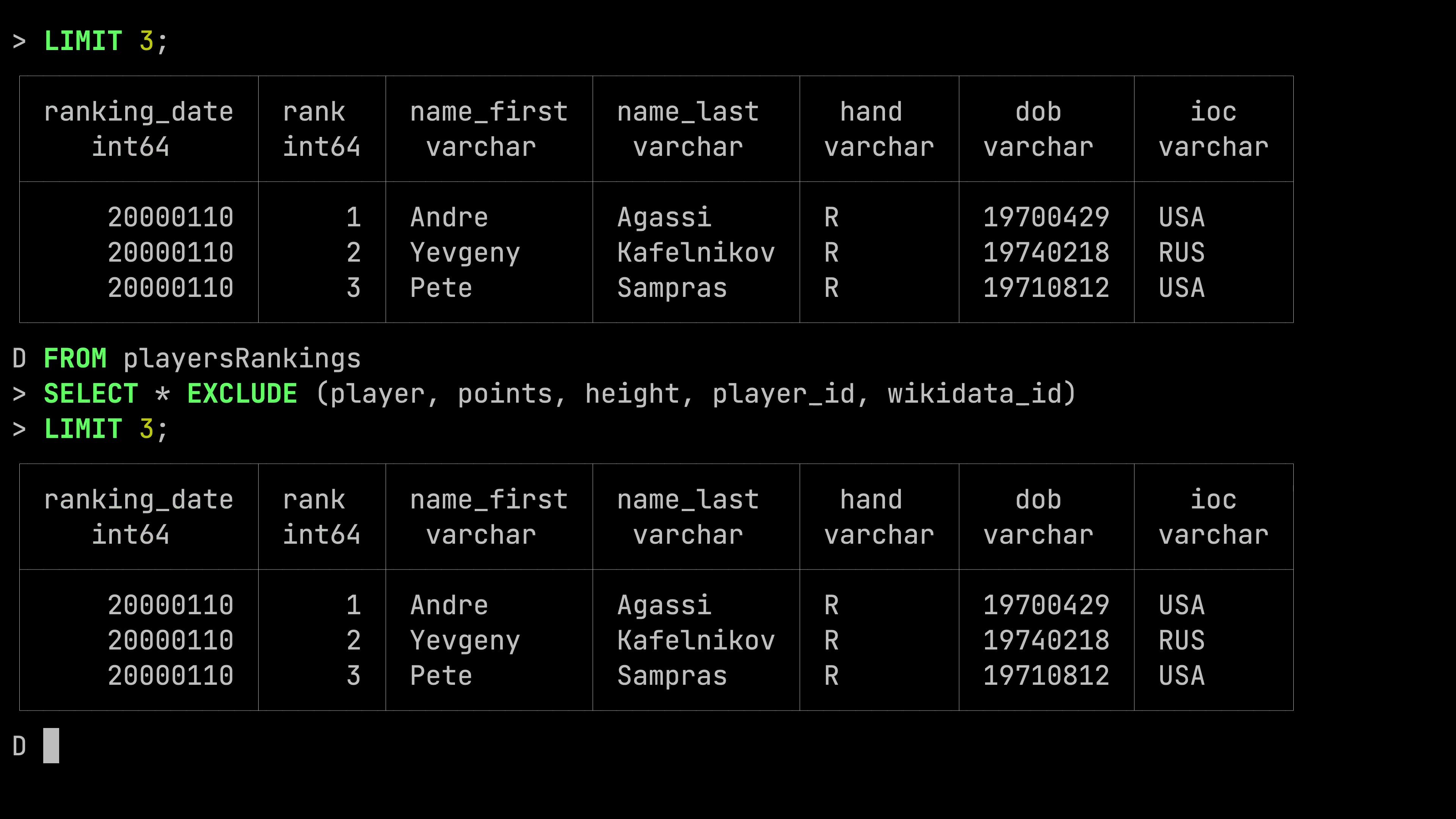

Figure 5. First frame of scene 7

Pretty cool, I’d say it’s done a great job. I’m gonna give this a go on my next video to see if it saves me time, but here’s hoping!
