23 Nov 2021

Apache Pinot: org.apache.helix.HelixException: Cluster structure is not set up for cluster: PinotCluster

In my continued exploration of Apache Pinot, I wanted to spin up all the components individually rather than relying on one of the QuickStarts that takes care of that for me. In doing so I came across an interesting error that we’ll explore in this post.

Setup

We’re going to spin up a local instance of Pinot using the following Docker compose config:

version: '3.7'
services:
  zookeeper:
    image: zookeeper:3.5.6
    hostname: zookeeper
    container_name: manual-zookeeper
    ports:
      - "2181:2181"
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
  pinot-controller:
    image: apachepinot/pinot:0.9.0
    command: "StartController -zkAddress manual-zookeeper:2181"
    container_name: "manual-pinot-controller"
    ports:
      - "9000:9000"
    depends_on:
      - zookeeper
  pinot-broker:
    image: apachepinot/pinot:0.9.0
    command: "StartBroker -zkAddress manual-zookeeper:2181"
    container_name: "manual-pinot-broker"
    ports:
      - "8099:8099"
    depends_on:
      - pinot-controller
  pinot-server:
    image: apachepinot/pinot:0.9.0
    command: "StartServer -zkAddress manual-zookeeper:2181"
    container_name: "manual-pinot-server"
    depends_on:
      - pinot-broker

This will spin up a ZooKeeper instance that will store all of Pinot’s metadata. We’ll also spin up a Pinot Controller to manage the metadata, a Pinot Server to host the data and serve queries, and a Pinot Broker that receives queries from clients and sends them to the right server.

We can launch the containers by running the following command:

docker-compose up

If we wait a few seconds we’ll eventually see the following exception:

manual-pinot-broker | 2021/11/23 13:20:02.792 ERROR [ZKHelixManager] [Start a Pinot [BROKER]] fail to createClient.
manual-pinot-broker | org.apache.helix.HelixException: Cluster structure is not set up for cluster: PinotCluster
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.handleNewSession(ZKHelixManager.java:1124) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.createClient(ZKHelixManager.java:701) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.connect(ZKHelixManager.java:738) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.broker.broker.helix.BaseBrokerStarter.start(BaseBrokerStarter.java:195) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.service.PinotServiceManager.startBroker(PinotServiceManager.java:147) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.service.PinotServiceManager.startRole(PinotServiceManager.java:96) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand$1.lambda$run$0(StartServiceManagerCommand.java:276) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand.startPinotService(StartServiceManagerCommand.java:302) [pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand$1.run(StartServiceManagerCommand.java:276) [pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]

The problem here is that the broker is unable to start because the cluster structure hasn’t been set up yet.

I found that this only happened the first time that I ran docker-compose up. If I killed everything and ran the command again it would work fine. This made me suspicious that some data was being written to ZooKeeper the first time that everything started up on my machine and that it was being kept around for subsequent runs. I was able to confirm that by running docker-compose rm to delete everything before I ran docker-compose up again.

After spending a bit of time reading the Pinot code, I could see that the Broker was trying to read metadata from ZooKeeper before the Controller had written it:

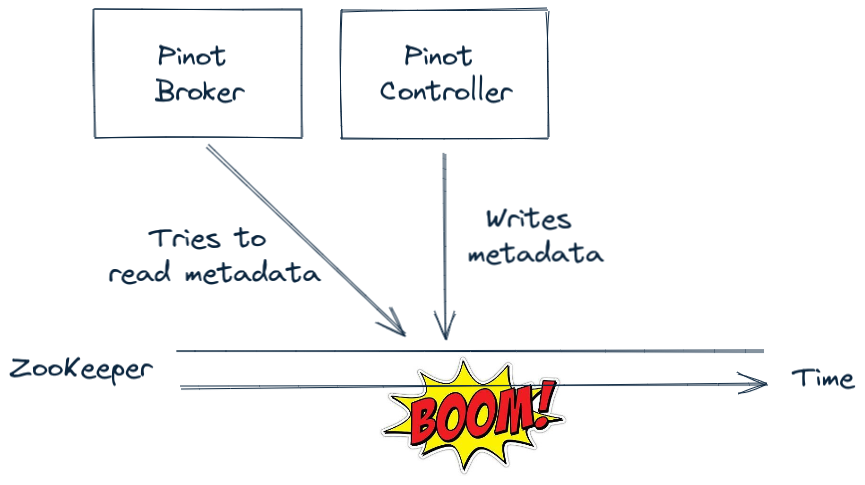

Figure 1. Race condition - ZooKeeper metadata

One way to work around this would be to stop the Broker from starting until the Controller was ready, but there isn’t really a clean way to do this in Docker. Instead what we can do is use the restart: unless-stopped config parameter, which was shown to me by Diogo Baeder on the Pinot user Slack.

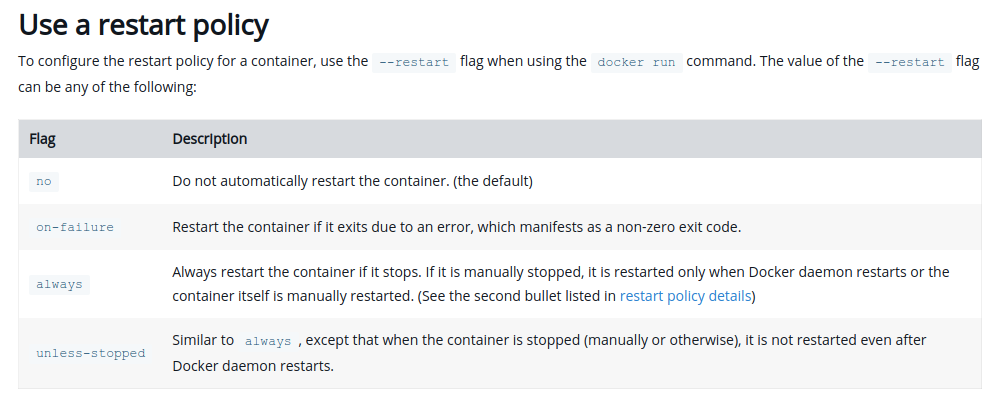

Figure 2. Docker restart policy

Our Docker Compose file therefore looks like this:

version: '3.7'
services:
  zookeeper:
    image: zookeeper:3.5.6
    hostname: zookeeper
    container_name: manual-zookeeper
    ports:
      - "2181:2181"
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000
  pinot-controller:
    image: apachepinot/pinot:0.9.0
    command: "StartController -zkAddress manual-zookeeper:2181"
    container_name: "manual-pinot-controller"
    restart: unless-stopped
    ports:
      - "9000:9000"
    depends_on:
      - zookeeper
  pinot-broker:
    image: apachepinot/pinot:0.9.0
    command: "StartBroker -zkAddress manual-zookeeper:2181"
    restart: unless-stopped
    container_name: "manual-pinot-broker"
    ports:
      - "8099:8099"
    depends_on:
      - pinot-controller
  pinot-server:
    image: apachepinot/pinot:0.9.0
    command: "StartServer -zkAddress manual-zookeeper:2181"
    restart: unless-stopped
    container_name: "manual-pinot-server"
    depends_on:
      - pinot-broker

And if we run docker-compose up now, we’ll see the following:

manual-pinot-broker | 2021/11/23 13:53:19.419 ERROR [PinotServiceManager] [Start a Pinot [BROKER]] Failed to start Pinot Broker
manual-pinot-broker | org.apache.helix.HelixException: Cluster structure is not set up for cluster: PinotCluster
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.handleNewSession(ZKHelixManager.java:1124) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.createClient(ZKHelixManager.java:701) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.connect(ZKHelixManager.java:738) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.broker.broker.helix.BaseBrokerStarter.start(BaseBrokerStarter.java:195) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.service.PinotServiceManager.startBroker(PinotServiceManager.java:147) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.service.PinotServiceManager.startRole(PinotServiceManager.java:96) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand$1.lambda$run$0(StartServiceManagerCommand.java:276) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand.startPinotService(StartServiceManagerCommand.java:302) [pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand$1.run(StartServiceManagerCommand.java:276) [pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 2021/11/23 13:53:19.420 ERROR [StartServiceManagerCommand] [Start a Pinot [BROKER]] Failed to start a Pinot [BROKER] at 0.927 since launch
manual-pinot-broker | org.apache.helix.HelixException: Cluster structure is not set up for cluster: PinotCluster
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.handleNewSession(ZKHelixManager.java:1124) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.createClient(ZKHelixManager.java:701) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.helix.manager.zk.ZKHelixManager.connect(ZKHelixManager.java:738) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.broker.broker.helix.BaseBrokerStarter.start(BaseBrokerStarter.java:195) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.service.PinotServiceManager.startBroker(PinotServiceManager.java:147) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.service.PinotServiceManager.startRole(PinotServiceManager.java:96) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand$1.lambda$run$0(StartServiceManagerCommand.java:276) ~[pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand.startPinotService(StartServiceManagerCommand.java:302) [pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
manual-pinot-broker | 	at org.apache.pinot.tools.admin.command.StartServiceManagerCommand$1.run(StartServiceManagerCommand.java:276) [pinot-all-0.9.0-jar-with-dependencies.jar:0.9.0-cf8b84e8b0d6ab62374048de586ce7da21132906]
....
manual-pinot-broker | 2021/11/23 13:53:21.834 INFO [StartBrokerCommand] [main] Executing command: StartBroker -brokerHost null -brokerPort 8099 -zkAddress manual-zookeeper:2181
manual-pinot-broker | 2021/11/23 13:53:21.850 INFO [StartServiceManagerCommand] [main] Executing command: StartServiceManager -clusterName PinotCluster -zkAddress manual-zookeeper:2181 -port -1 -bootstrapServices []
manual-pinot-broker | 2021/11/23 13:53:21.850 INFO [StartServiceManagerCommand] [main] Starting a Pinot [SERVICE_MANAGER] at 0.603s since launch
manual-pinot-broker | 2021/11/23 13:53:21.853 INFO [StartServiceManagerCommand] [main] Started Pinot [SERVICE_MANAGER] instance [ServiceManager_f165640a2780_-1] at 0.606s since launch
manual-pinot-broker | 2021/11/23 13:53:21.860 INFO [StartServiceManagerCommand] [Start a Pinot [BROKER]] Starting a Pinot [BROKER] at 0.612s since launch
manual-pinot-broker | Nov 23, 2021 1:53:27 PM org.glassfish.grizzly.http.server.NetworkListener start
manual-pinot-broker | INFO: Started listener bound to [0.0.0.0:8099]
manual-pinot-broker | Nov 23, 2021 1:53:27 PM org.glassfish.grizzly.http.server.HttpServer start
manual-pinot-broker | INFO: [HttpServer] Started.
manual-pinot-server | 2021/11/23 13:53:30.322 INFO [StartServiceManagerCommand] [Start a Pinot [SERVER]] Started Pinot [SERVER] instance [Server_192.168.144.5_8098] at 11.279s since launch
manual-pinot-broker | 2021/11/23 13:53:32.578 INFO [StartServiceManagerCommand] [Start a Pinot [BROKER]] Started Pinot [BROKER] instance [Broker_192.168.144.4_8099] at 11.33s since launch

The Broker still has the same problem the first time that it starts, but when it restarts and tries again the cluster structure is ready to go.
