Neo4j: Storing inferred relationships with APOC triggers

One of my favourite things about modelling data in graphs is how easy it makes it to infer relationships between pieces of data based on other relationships. In this post we’re going to learn how to compute and store those inferred relationships using the triggers feature from the APOC library.

Meetup Graph

Before we get to that, let’s first understand what we mean when we say inferred relationship. We’ll create a small graph containing Person, Meetup, and Topic nodes with the following query:

MERGE (mark:Person {name: "Mark"})

MERGE (neo4jMeetup:Meetup {name: "Neo4j London Meetup"})
MERGE (bigDataMeetup:Meetup {name: "Big Data Meetup"})
MERGE (dataScienceMeetup:Meetup {name: "Data Science Meetup"})

MERGE (dataScience:Topic {name: "Data Science"})
MERGE (databases:Topic {name: "Databases"})

MERGE (neo4jMeetup)-[:HAS_TOPIC]->(dataScience)
MERGE (neo4jMeetup)-[:HAS_TOPIC]->(databases)
MERGE (bigDataMeetup)-[:HAS_TOPIC]->(dataScience)
MERGE (bigDataMeetup)-[:HAS_TOPIC]->(databases)
MERGE (dataScienceMeetup)-[:HAS_TOPIC]->(dataScience)
MERGE (dataScienceMeetup)-[:HAS_TOPIC]->(databases)

MERGE (mark)-[:MEMBER_OF]->(neo4jMeetup)
MERGE (mark)-[:MEMBER_OF]->(bigDataMeetup)

This is what the graph looks like in the Neo4j browser:

meetup explicit

Finding implicit interests

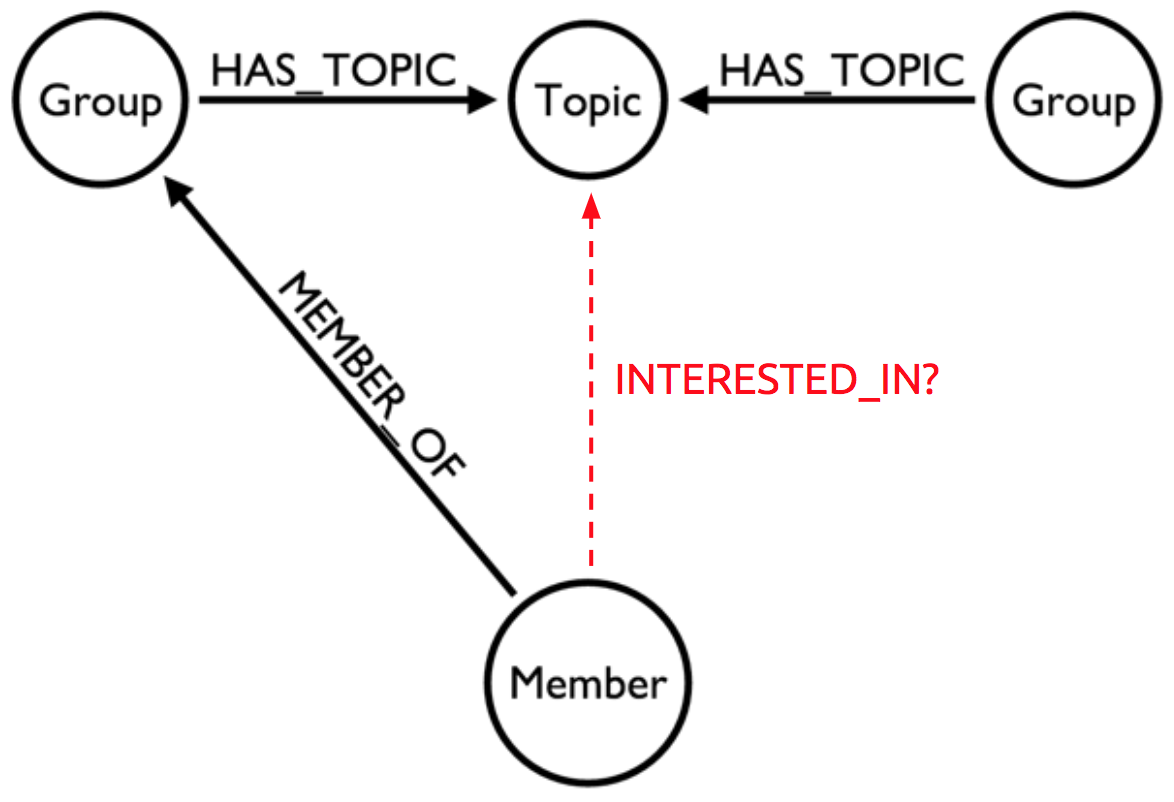

At the moment there are no relationships between Person and Topic nodes, so we don’t know which topics a person is interested in. There is, however, an indirect relationship between these nodes via Group nodes.

inferred rels

Let’s say that a person is interested in a topic if they’re a member of at least 3 groups tagged with that topic. In other words, we want to create an INTERESTED_IN relationship between a Person and Topic if a person is a member of at least 3 groups tagged with that topic. We could do this with the following Cypher query:

MATCH (start:Person {name: "Mark"})-[:MEMBER_OF]->()-[:HAS_TOPIC]->(topic)
WHERE not((start)-[:INTERESTED_IN]->(topic))
WITH start, topic, count(*) AS count
WHERE count >= 3
MERGE (start)-[interestedIn:INTERESTED_IN]->(topic)
SET interestedIn.tentative = true

If we run this query at the moment it won’t create any INTERESTED_IN relationships, because none of the topics that Mark has an implicit interest in have a count of 3. We can fix that by creating a relationship from Mark to the Data Science meetup with the following query:

MATCH (p:Person {name: "Mark"})
MATCH (meetup:Meetup {name: "Data Science Meetup"})
MERGE (p)-[:MEMBER_OF]->(meetup)

If we run this query and then repeat the previous one we’ll get this output:

Created 2 relationships, completed after 2 ms.

Cool! We now know that Mark has an interest in Data Science and Databases

interestedin

We put a tentative property with a value true to indicate that this is an inferred relationship. We could then ask the user to confirm that this is a topic they’re interested in, or indeed deny any interest at all!

Triggers

This works well, but it’s a painful workflow at the moment. Each time we add a new membership we need to run the inferred relationship query as well. Can we automate that?

Yes we can, using triggers from the APOC library, which are described like this:

In a trigger you register Cypher statements that are called when data in Neo4j is changed, you can run them before or after commit.

We want to setup a trigger that executes a piece of Cypher whenever a relationship is created. We can do this with the following code:

CALL apoc.trigger.add("interests",
  "UNWIND [rel in $createdRelationships WHERE type(rel) = 'MEMBER_OF'] AS rel
   WITH startNode(rel) AS start, endNode(rel) AS end
   MATCH (start)-[:MEMBER_OF]->()-[:HAS_TOPIC]->(topic)
   WHERE not((start)-[:INTERESTED_IN]->(topic))
   WITH start, topic, count(*) AS count
   WHERE count >= 3
   MERGE (start)-[interestedIn:INTERESTED_IN]->(topic)
   SET interestedIn.tentative = true
   ",
  {phase:'before'})

This code is based on the assumption that we usually only create one MEMBER_OF relationship per Person in a transaction. Our trigger receives a list of all the relationships created in a transaction, filters the list to only include the MEMBER_OF ones, and then runs a piece of Cypher that creates an INTERESTED_IN relationship from a user to topics that they may have an interest in.

If we want to change the threshold at which we create the relationships we’d only need to change this line of code:

WHERE count >= 3

And that’s it!
